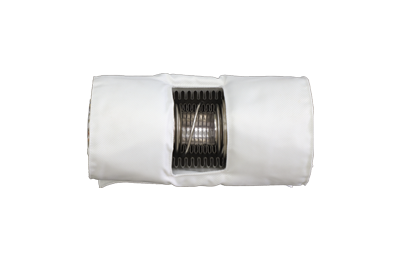

HEAT BELLOWS
HEAT BELLOWS
HEAT BELLOWS
| Classification | Description |
|---|---|
|
Product |

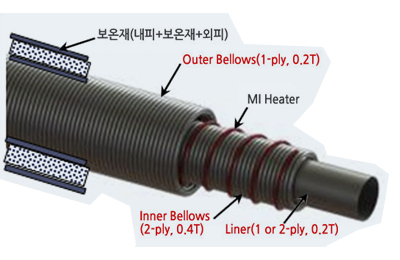

3-layer Heat Bellows(Interlock + 2-Ply Inner Bellows + 1-Ply Outer Bellows) |
|
Material |
STS316L, STS316Ti, Inconel |
|
Application |
Lower part of equipment, Pump Exhaust Line, etc |
|
Oper. Temp. |
Max. 200℃ |
|
Main Supply Contractor |
SK-Hynix, Taiwan, etc |
|
Product description |
Flexible Bellows allow installation in any location with no piping required Lasts for a long time and has an excellent thermal efficiency Internal liner insertion eliminates Bellows' cupping for smooth flow of internal fluid Suppresses temperature drop and powder generation on the line to increase PM cycle by 2~3 times |
